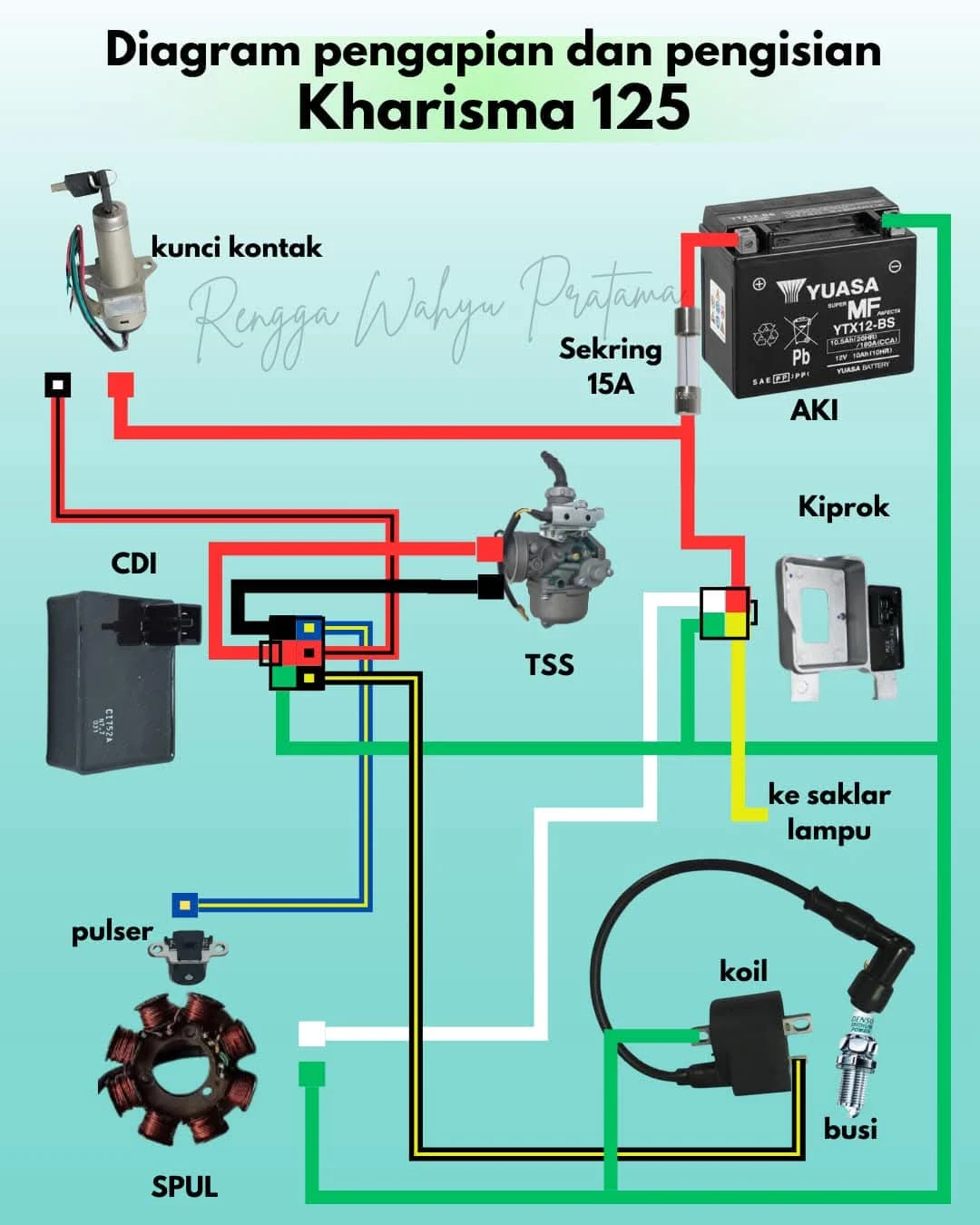

Diagram Pengapian Dan Pengisian Honda Kharisma

Berikut penjelasan singkat terkait warna kabel Honda Karisma:

Hijau: untuk massa
Hitam garis kuning: menunjukkan koil
Biru garis kuning: adalah pulser motor
Merah: ialah kabel aki 12 volt
Hitam garis merah: menunjukan TSS (Throttle Switch System)
Kuning: Api Kiprok Ke saklar
Kuning Garis Hitam: koil
Putih: Jalur Pengisian Kiprok

4 tak honda honda kharisma kharisma
